Rivers, Lakes & Seawater Remote Water Quality Sensors

TracWater IAAS cloud-based instrumented buoys offer a real-time environmental water quality monitoring solution.

Benefits

TracWater's cloud-based environmental water quality monitoring solutions offer real-time, remote monitoring across freshwater, seawater and wastewater environments. Floating instrumented buoys host a variety of sensor combinations including conductivity, salinity, pH, oxygen reduction potential, dissolved oxygen, turbidity, and temperature and wirelessly communicate to the TracWater IAAS user friendly online platform providing a completely integrated solution.

 Geo-mapped data

TracWater IAAS attaches a unique signature to every piece of data with date, time and location for geographical visual display and fast comparison analysis. Easily self-manage new installations using the TracWater IAAS portal.

water drop
 Smart Cloud Monitoring

Dynamic communication between multiple floating buoy sensors and automatic wireless data uploads for real-time remote monitoring. Sensor heartbeat monitoring for battery life and NB-IoT signal strength and user configurable report generation and alert functions.

waterdrop
 Completely Integrated Solution.

 TracWater software enables automatic registration and synchronisation of devices so you can instantly start monitoring from any of your devices through the online portals interactive easy to interpret statistical analysis.

water drop

TracWater Cloud-based Instrumented Buoy

    • Remote, cloud-based environmental water monitoring
      solution (freshwater & saltwater compatible, potable,
      recycled and wastewater compatible)

    • Compact and self-stable buoy

    • Instrumented Buoys with radio and 4G communication (LTE-M / NB-IoT)

    • Multiple sensor options available to suit monitoring requirements.

    • Time-stamped data can be sent to GIS or SCADA

    • Bouy’s can retrieve data by radio from other buoys nearby and send data wirelessly via GSM / GPRS to TracWater IaaS platform.

    • All in one remote monitoring solution: Hardware comes pre-configured to the TracWater Information-As-A-Service user friendly online portal.

    • Live geo-mapped view of installed locations

    • Secure access to all real-time and historical data with full analysis capabilities.

    • Live geo-mapped view of installed locations

    • User configurable email and SMS alarms and alerts

    • Automatic daily/weekly and or monthly user report generation

  • Dissolved Oxygen / Temperature - BAN-OX:

    DO uses luminescent optical technology. This sensor is approved by the ASTM International Method D888-05. Accurately measures in all situations and especially in very low oxygen concentrations. Sensors can be contained inside titanium or stainless-steel body.

    ​

    pH / Orp / Temperature - BAN-PH:

    Uses digital technology and combined electrodes. The calibration data is held inside the sensor.

    ​

    Conductivity / Salinity / Temperature - BAN-CE:

    Uses four electrode technology. An alternating current of constant-voltage is established between a primary pair of electrodes in graphite. The secondary platinum electrodes regulate the voltage imposed to primary electrodes reflecting the fouling. The voltage measured between the primary electrodes is the function of the resistance conductivity measurement.

    ​

    Turbidity / Temperature - BAN-TU:

    Turbidity optical sensors measurements based on infra-red nephelometry / 850 nm. The sensor can be calibrated with a formazin standard solutions.

    • Natural water monitoring (River, Lakes & Seawater)

    • Wastewater monitoring.

    • Treatment of industrial effluents
  • Software
    TracWater Information-As-A-Service Online Portal

    Data Format
    Users can download data into a CSV file from the TracWater online portal. Automatic uploads of formatted data to a nominated server can be programmed to meet third-party software specifications and data security requirements.

    Hardware
    • ​Datalogger: 500.000 Measures
    • Radio access point: Yes
    • HF antenna: Internal or External depending on model
    • Option GSM antenna: External on GSM/GPRS models
    • Operating temperature: -40 …85°C
    • housing: ABS 20%FV
    • Sealing: IP68
    • Energy: Bat : 3,6V 34Ah
    • Autonomy: Up to 4 years
    • Configuration:
      – AVELOUR software using RFID wireless connection
      – USB/RS485 Converter module for calibration
    • ATEX certification:
      II 3G Ex ic nA IIB T4 Gc
      Tamb : -20°C…+60°C
    • Certification : FCC: SE6A001 – IC: 10983A-A001
      CE/FCC/IC
    • Buoyancy volume: 2L

    Dimensions
    • Dimensions: Ø 160 x 580mm (with external antenna)
    • Weight including batteries: 1Kg
TW by.png

TracWater Buoy Monitoring System

    • Stable, modular design, ethylene vinyl acetate foam hull with tough coatings.


    • Stainless steel sensor protection guard plus an external stainless-steel ring for added core protection.


    • Quick and easy deployment with lifting rigs.


    • 40W top-mounted solar panel, connected to an internal rechargeable battery pack.


    • Supports many TracWater and third-party probes.


    • Buoys can be moored to river or lake bottoms via anchor chains.


    • Multiple data communication options available: GPRS, 3G, 4G or NB-IOT


    • Preconfigured to the TracWater IaaS platform for geo-mapping and user-friendly interactive data visualisations and analysis.

  • Online multi-parameter sensor

    The Online Multi-Parameter Water Quality Sensor is one of the most comprehensive water quality monitoring products for dissolved oxygen, conductivity, turbidity, pH, chlorophyll, blue-green algae, oil-in-water, and temperature measurement in a single platform.

    ​

    UV254 COD sensor

    The UV254 COD sensor features a highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation.

    ​

    Ammonium sensor

    The online ammonium ISE sensor measures ammonium electron concentration without using any chemicals. No reagent, no pollutants, making it a more economic and environmentally friendly option. The sensor uses pH, ammonium ion electrodes, and an optional potassium ion electrode to determine the NH₄⁺-N concentration.

  • Water quality monitoring buoys are suitable for many applications.

    • Environmental Monitoring
    • Pollution Tracking
    • Habitat Monitoring.
    • Species Tracking
    • Research and Education
    • Scientific Research
    • Educational Tools

    ​Suitable for long- and short-term monitoring requirements.

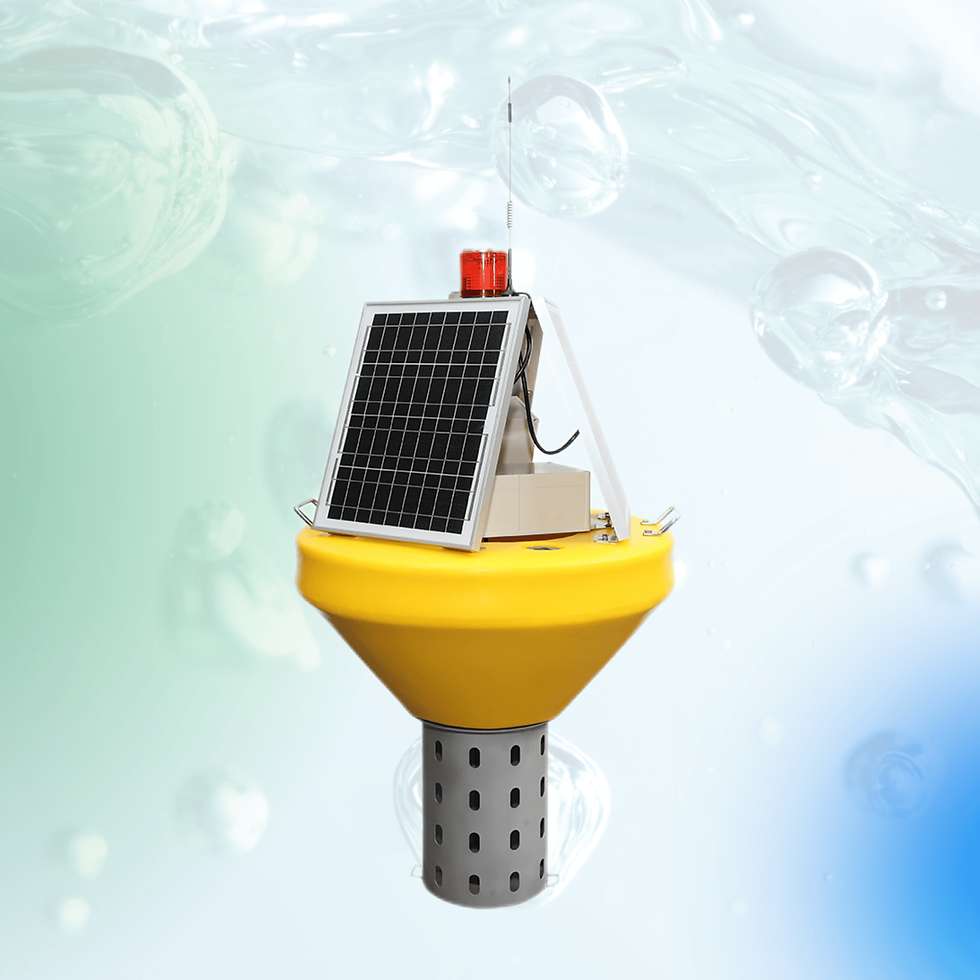

  • ​Name: Buoy Monitoring System Water
    Model: TW-9713
    Size: Φ920 x 750mm
    Weight: 40kg
    Solar Panel Power: 40W
    Battery Specification: 12V, 54AH
    Material:PE housing, EVA filling, 316L, 304 stainless steel
    Wireless Transmission: Support GPRS, 3G, 4G, or NB-IOT (optional)
    Software Platform: Remote transmission to the TracWater cloud platform or specified platform related services
    Sensor:
    Online multi-parameter sensor
    UV254 COD sensor
    Ammonium sensor
TW by (1).png

TracWater Mini Buoy Monitoring System

    • Compact, light, and stable; robust with modular design; ethylene vinyl acetate foam hull with tough coatings.


    • Quick and easy deployment with lifting rigs.


    • Stainless steel sensor protection guard plus an external stainless-steel ring for added core protection.


    • 30W top-mounted solar panel, connected to an internal rechargeable battery pack.


    • Supports many TracWater and third-party probes.


    • Buoys can be moored to river or lake bottoms via anchor chains.


    • Multiple data communication options available: GPRS, 3G, 4G or NB-IOT


    • Preconfigured to the TracWater IaaS platform for geo-mapping and user-friendly interactive data visualisations and analysis.


  • Online multi-parameter sensor

    The Online Multi-Parameter Water Quality Sensor is one of the most comprehensive water quality monitoring products for dissolved oxygen, conductivity, turbidity, pH, chlorophyll, blue-green algae, oil-in-water, and temperature measurement in a single platform.

    ​

    UV254 COD sensor

    The UV254 COD sensor features a highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation

    ​

    Ammonium sensor

    The online ammonium ISE sensor measures ammonium electron concentration without using any chemicals. No reagent, no pollutants, making it a more economic and environmentally friendly option. The sensor uses pH, ammonium ion electrodes, and an optional potassium ion electrode to determine the NH₄⁺-N concentration.

    • Environmental Monitoring

    • Pollution Tracking

    • Habitat Monitoring

    • Species Tracking

    • Research and Education

    • Scientific Research

    • Educational Tools

  • ​Name: Mini Buoy Monitoring System
    Model: TW-9714
    Size: Φ590 x 940mm
    Weight: 23kg
    Solar Panel Power: 30W
    Battery Specification: 12V, 54AH
    Material: PE housing, EVA filling, 316L, 304 stainless-steel
    Wireless Transmission: Support GPRS, 3G, 4G, or NB-IOT (optional)
    Software Platform: Remote transmission to the TracWater cloud platform or specified platform related services
    Sensor:
    Online multi-parameter sensor
    UV254 COD sensor
    Ammonium sensor
Untitled design (5)_edited.jpg

Can't find what your looking for?

Don't worry, we can also build speciality items to suit your business's needs.

Purpose-designed digital water quality analysis sensors are available. No reagent is needed. We have more coming.
